#include "pico.h"
#include "pico/stdio.h"
#include "pico/time.h"
#include "hardware/gpio.h"
#include "hardware/uart.h"

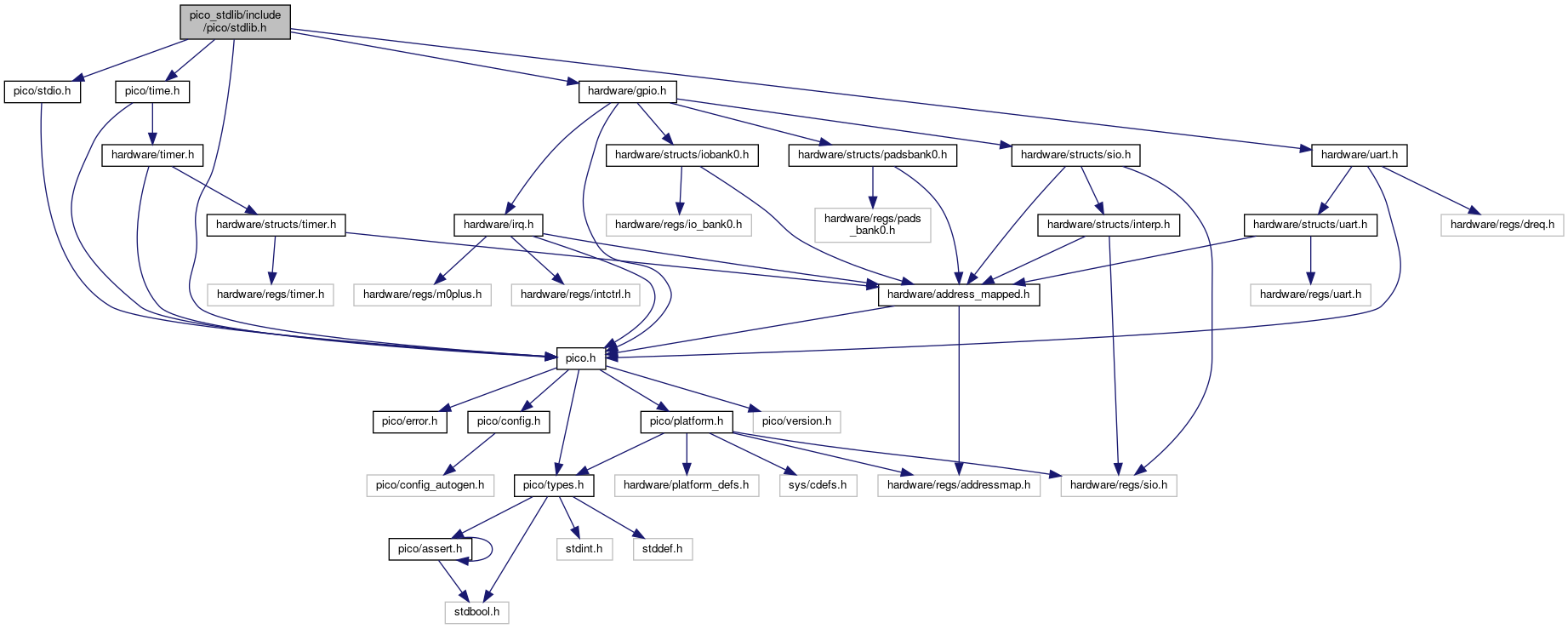

Include dependency graph for stdlib.h:

Macros
#define	PICO_DEFAULT_LED_PIN_INVERTED 0

Functions
void	setup_default_uart (void)
	Set up the default UART and assign it to the default GPIO'sBy default this will use UART 0, with TX to pin GPIO 0, RX to pin GPIO 1, and the baudrate to 115200. More...

void	set_sys_clock_48mhz (void)
	Initialise the system clock to 48MHzSet the system clock to 48MHz, and set the peripheral clock to match.

void	set_sys_clock_pll (uint32_t vco_freq, uint post_div1, uint post_div2)
	Initialise the system clock. More...

bool	check_sys_clock_khz (uint32_t freq_khz, uint vco_freq_out, uint post_div1_out, uint *post_div2_out)
	Check if a given system clock frequency is valid/attainable. More...

static bool	set_sys_clock_khz (uint32_t freq_khz, bool required)
	Attempt to set a system clock frequency in khzNote that not all clock frequencies are possible; it is preferred that you use src/rp2_common/hardware_clocks/scripts/vcocalc.py to calculate the parameters for use with set_sys_clock_pll. More...
