clocks.h File Reference

#include "pico.h"
#include "hardware/structs/clocks.h"

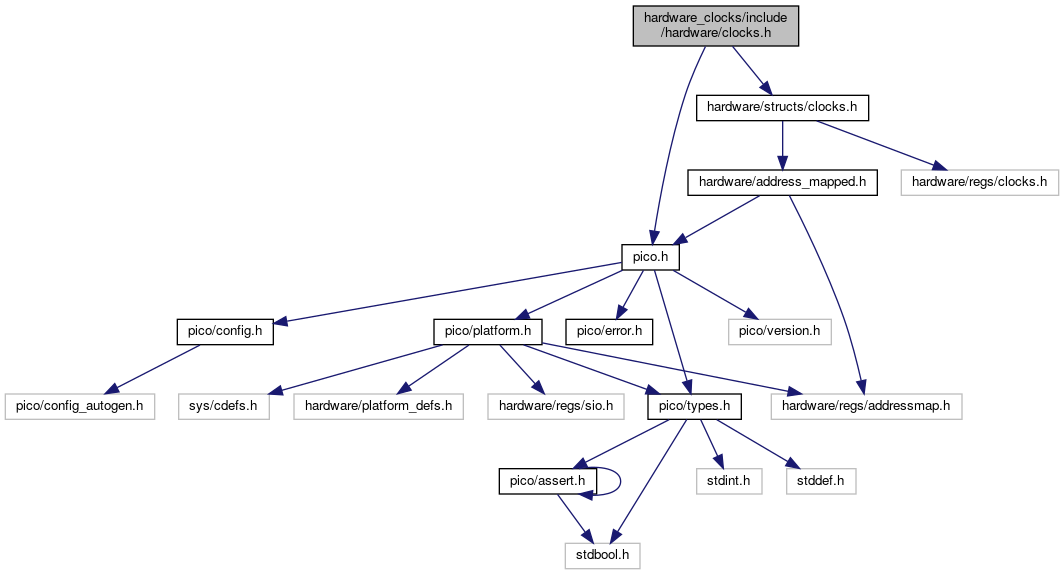

Include dependency graph for clocks.h:

Go to the source code of this file.

Macros
#define	KHZ   1000
#define	MHZ   1000000
#define	PARAM_ASSERTIONS_ENABLED_CLOCKS   0

Typedefs
typedef void(*	resus_callback_t) (void)
	Resus callback function type.User provided callback for a resus event (when clk_sys is stopped by the programmer and is restarted for them).

Functions
void	clocks_init (void)
	Initialise the clock hardwareMust be called before any other clock function.
bool	clock_configure (enum clock_index clk_index, uint32_t src, uint32_t auxsrc, uint32_t src_freq, uint32_t freq)
	Configure the specified clockSee the tables in the description for details on the possible values for clock sources. More...
void	clock_stop (enum clock_index clk_index)
	Stop the specified clock. More...
uint32_t	clock_get_hz (enum clock_index clk_index)
	Get the current frequency of the specified clock. More...
uint32_t	frequency_count_khz (uint src)
	Measure a clocks frequency using the Frequency counter.Uses the inbuilt frequency counter to measure the specified clocks frequency. Currently, this function is accurate to +-1KHz. See the datasheet for more details.
void	clock_set_reported_hz (enum clock_index clk_index, uint hz)
	Set the "current frequency" of the clock as reported by clock_get_hz without actually changing the clock. More...
static float	frequency_count_mhz (uint src)
void	clocks_enable_resus (resus_callback_t resus_callback)
	Enable the resus function. Restarts clk_sys if it is accidentally stopped.The resuscitate function will restart the system clock if it falls below a certain speed (or stops). This could happen if the clock source the system clock is running from stops. For example if a PLL is stopped. More...
void	clock_gpio_init_int_frac (uint gpio, uint src, uint32_t div_int, uint8_t div_frac)
	Output an optionally divided clock to the specified gpio pin. More...
static void	clock_gpio_init (uint gpio, uint src, float div)
	Output an optionally divided clock to the specified gpio pin. More...
bool	clock_configure_gpin (enum clock_index clk_index, uint gpio, uint32_t src_freq, uint32_t freq)
	Configure a clock to come from a gpio input. More...
