picoboot.h File Reference

#include <stdint.h>
#include <stdbool.h>
#include <assert.h>
#include "pico/platform.h"

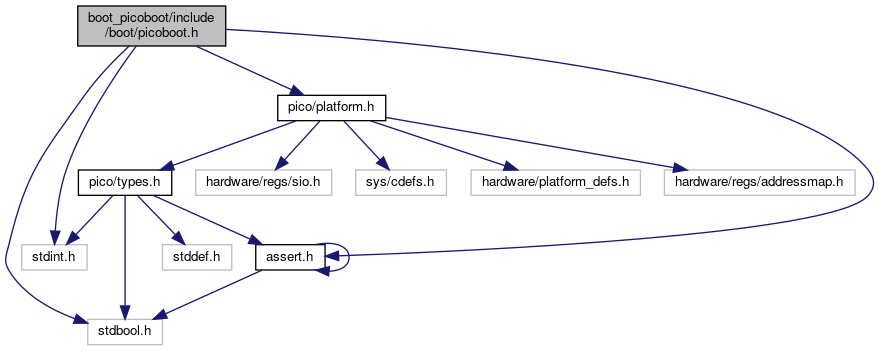

Include dependency graph for picoboot.h:

Go to the source code of this file.

Data Structures
struct	picoboot_reboot_cmd
struct	picoboot_address_only_cmd
struct	picoboot_range_cmd
struct	picoboot_exclusive_cmd

Macros
#define	PICOBOOT_MAGIC   0x431fd10bu
#define	PICOBOOT_IF_RESET   0x41
#define	PICOBOOT_IF_CMD_STATUS   0x42

Enumerations
enum	picoboot_cmd_id {   PC_EXCLUSIVE_ACCESS = 0x1, PC_REBOOT = 0x2, PC_FLASH_ERASE = 0x3, PC_READ = 0x84,   PC_WRITE = 5, PC_EXIT_XIP = 0x6, PC_ENTER_CMD_XIP = 0x7, PC_EXEC = 0x8,   PC_VECTORIZE_FLASH = 0x9 }
enum	picoboot_status {   PICOBOOT_OK = 0, PICOBOOT_UNKNOWN_CMD = 1, PICOBOOT_INVALID_CMD_LENGTH = 2, PICOBOOT_INVALID_TRANSFER_LENGTH = 3,   PICOBOOT_INVALID_ADDRESS = 4, PICOBOOT_BAD_ALIGNMENT = 5, PICOBOOT_INTERLEAVED_WRITE = 6, PICOBOOT_REBOOTING = 7,   PICOBOOT_UNKNOWN_ERROR = 8 }
enum	picoboot_exclusive_type { NOT_EXCLUSIVE = 0, EXCLUSIVE, EXCLUSIVE_AND_EJECT }

Functions
struct __packed	__aligned (4) picoboot_cmd
